Did you know that power outages affected over 83 million Americans in 2020 alone? That's why we're going to show you how to safely install a portable generator transfer switch – an essential component that many homeowners overlook until it's too late. While hooking up a generator directly to your home might seem tempting during an emergency, this dangerous shortcut can damage your electrical system, harm utility workers, or worse. Let's explore the proper way to connect your generator and protect your family when the lights go out.
What Is a Transfer Switch
When it comes to safely connecting a portable generator to your home's electrical system, a transfer switch is an essential piece of equipment that prevents backfeeding. Think of it as a safety guard that stands between your generator and your home's electrical panel, making sure power flows only in the intended direction.

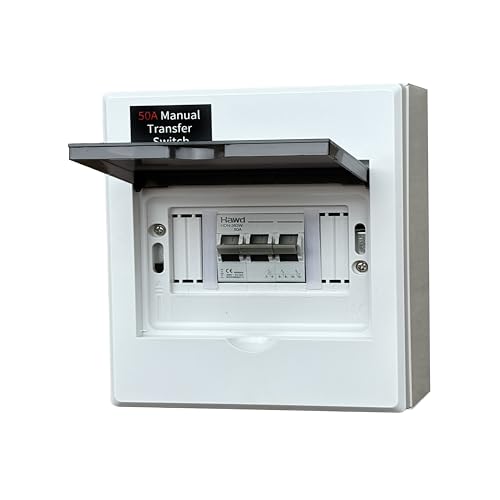

A transfer switch is basically a specialty electrical panel that we install between your home's main electrical panel and your portable generator. It lets us safely power specific circuits in your home during an outage without risking damage to equipment or harm to utility workers.
When we lose power, we simply flip the switch to transfer from utility power to generator power for the circuits we've selected.
We'll find two main types of transfer switches: manual and automatic. For portable generators, we typically use manual transfer switches since they're more cost-effective and simpler to install.
They require us to physically switch between power sources, but that's actually a good thing – it gives us complete control over when and how we're using our generator power.
Benefits of Professional Installation
While installing a transfer switch might seem like a straightforward DIY project, professional installation offers significant advantages for safety and reliability. We can't stress enough how important it's to have this critical component installed correctly, as it protects both your home's electrical system and your family's wellbeing.
Licensed electricians bring years of experience and up-to-date knowledge of local electrical codes. They'll guarantee your transfer switch is properly sized for your generator and home's electrical load, preventing dangerous overloads that could damage your appliances or create fire hazards.
Plus, they'll handle all the necessary permits and inspections, so you won't have to worry about legal compliance.
Professional installation also typically comes with warranties and guarantees that protect your investment. If something goes wrong, you'll have recourse to get it fixed. We've seen too many DIY installations that needed costly repairs later.
When you consider the potential risks of improper installation – electrical fires, generator damage, or injury – the cost of professional installation becomes a worthwhile investment in your home's safety and your peace of mind.
Required Tools and Materials
A successful transfer switch installation requires a specific set of tools and materials to guarantee safe, code-compliant completion.
We'll need essential electrical tools like wire strippers, needle-nose pliers, a voltage tester, and various screwdrivers. Don't forget our trusty drill and drill bits for mounting the switch. A sturdy hammer, measuring tape, and level will secure proper placement and installation.
For materials, we'll want to gather the transfer switch kit itself, which usually includes the switch panel and necessary circuit breakers. We'll also need electrical conduit, wire connectors, and the appropriate gauge electrical wire – typically 10/3 or 8/3 depending on your generator's power output.
It's important to have weatherproof materials if we're installing outdoors, including waterproof boxes and covers.
Safety equipment is non-negotiable – let's make sure we've got insulated gloves, safety glasses, and a flashlight for working in dim conditions. Having some electrical tape, wire nuts, and extra mounting screws on hand will save us trips to the hardware store if we need them during installation.
Step-by-Step Installation Process
Now that we've gathered our tools and materials, let's start the installation process. First, we'll turn off the main power to your home at the circuit breaker – safety always comes first Then, we'll mount the transfer switch near your electrical panel, making sure it's easily accessible when you need to connect your generator.
| Step | Inside Work | Outside Work |
|---|---|---|
| 1 | Mount transfer switch | Install power inlet box |
| 2 | Connect circuit wires | Run conduit to panel |
| 3 | Label all circuits | Ground the system |
After mounting the switch, we'll remove the selected circuit wires from your main panel and connect them to the transfer switch. Don't worry – we'll label everything clearly so you'll know exactly which circuits can run on generator power. Next, we'll install the power inlet box on the exterior wall and run conduit between it and the transfer switch. This creates a safe path for the generator power to flow into your home.
Finally, we'll test everything thoroughly to guarantee it's working properly. Remember, this installation gives you the freedom to power your essential appliances during outages without dangerous extension cords or backfeeding.
Safety and Testing Guidelines
Proper safety testing of your newly installed transfer switch system represents a critical final step before regular use. We'll want to carefully verify all connections and guarantee everything's working correctly to protect both your home's electrical system and your family.
Let's start by checking that the transfer switch handle moves smoothly between positions. When the switch is in the "Line" position, confirm your home's receiving utility power as normal.
Next, we'll test the generator connection – but don't rush this part. Start your generator outdoors, let it warm up, and then switch to "Generator" power. Watch your household circuits carefully as you transfer each one to generator power. If you notice any unusual sounds, smells, or operation, switch back to utility power immediately.
We recommend running multiple test cycles between utility and generator power while monitoring your essential circuits. Don't forget to check that your generator's automatic shutdown features are functioning properly.
Once you're confident everything's operating safely, make sure everyone in your household knows how to use the transfer switch during an outage.
Frequently Asked Questions
How Long Does a Portable Generator Transfer Switch Typically Last?
We've found that quality portable generator transfer switches typically last 20-25 years with proper maintenance, but you'll want to inspect yours annually and replace it if you notice any performance issues.
Can Multiple Generators Be Connected to the Same Transfer Switch?
Like connecting multiple power sources to a single lifeline, we don't recommend hooking multiple generators to one transfer switch. It's unsafe and can damage your equipment or cause dangerous backfeeding situations.
Will a Transfer Switch Void My Home Insurance Policy?
We recommend checking your insurance policy and contacting your provider. Most policies won't void coverage for properly installed, code-compliant transfer switches, but it's smart to get written confirmation first.
What Happens to the Transfer Switch During Prolonged Power Outages?
We'll keep using our transfer switch safely during extended outages as long as we maintain our generator's fuel supply and follow proper cooling periods between generator runs.
Can I Install a Transfer Switch in a Mobile Home?
By jove, we absolutely can install transfer switches in mobile homes We'll need to follow specific mobile home electrical codes and guarantee it's installed by a licensed electrician for safety and compliance.
Conclusion
We've covered the essentials of transfer switch installation, a critical safety upgrade that 65% of generator owners now consider mandatory. While it's possible to install one yourself, we strongly recommend professional installation to guarantee everything's done correctly and safely. Remember, a properly installed transfer switch protects your home, your generator, and most importantly, your family during those inevitable power outages. Let's stay safe and powered up
